GYTY53 Double Sheath Steel Tape Armor Direct-Burial/ Duct/ Aerial Armored Fiber Optical Cable Fiber Optic Cables

  • 1
  • 2

Brand Name : Huaxin or OEM

Model Number : Outdoor Fiber Optic Cable GYTY53

Certification : CE,TLC,ISO9001

Place of Origin : China

MOQ : 2000M

Price : 2000 - 9999 meters $0.55

Payment Terms : L/C,T/T

Supply Ability : 500km PER DAY

Delivery Time : 7-14work days

Packaging Details : 1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation

Contact Now

GYTY53 Double Sheath Steel Tape Armor Direct-Burial/ Duct/ Aerial Armored Fiber Optical Cable Fiber Optic Cables

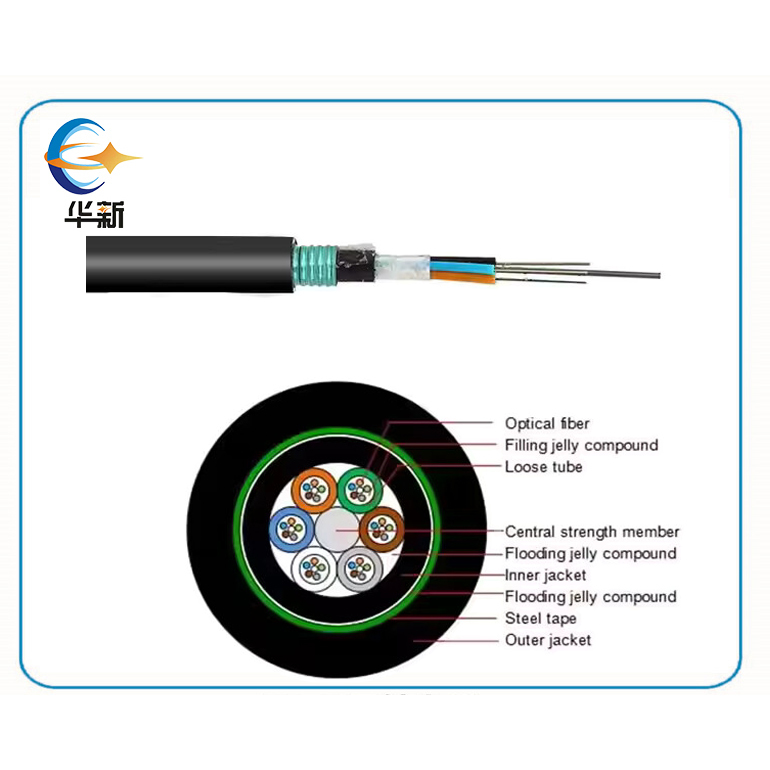

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the metallic strength member to form the cable core. Then the cable core is filled with water-blocking compound and covered with a PE inner jacket. After the corrugated steel tape (CST) is longitudinally armored over the inner jacket, the cable is completed with a PE outer jacket.
• Good mechanical and thermal performance
• Steel wire as the central strength member
• Hydrolysis resistant loose tube
• Tube filling gel ensures critical protection of fiber
• Stranded compact structure eliminating contraction of tubes
• Rugged, durable PE jacket protects against UV radiation, fungus etc.
• Crush resistance and flexibility
• Water-blocking measures :
- Loose tube gel-filled
- 100% cable filling compound
- Corrugated steel tape (CST) enhancing moisture-proof

Basic Info.

Model NO.
GYTY53
Cover Material
PE
Type
Telecommunication Cable
Material Shape
Round Wire
Conductor Type
Stranded
Wire Core Material
Steel
Certification
CE, ISO, RoHS
Model
GYTY53
Brand
Huaxin or OEM
Applications
Direct-Burial/Duct/Aerial Installation
Fiber Count
2-288 Cores
Certifications
CE,TLC,ISO9001
Jacket Type
Double Jacket
Armor
Corrugated Steel Tape
Strength Member
Steel Wire
Transport Package
Wooden Drum Iron-Wooden Drum with Fumigated or Not
Specification
2-288 Core
Trademark
Huaxin or OEM
Origin
China
HS Code
85447000
Production Capacity
35000km/Year

Packaging & Delivery

Package Size
150.00cm * 150.00cm * 75.00cm
Package Gross Weight
750.000kg

Photos

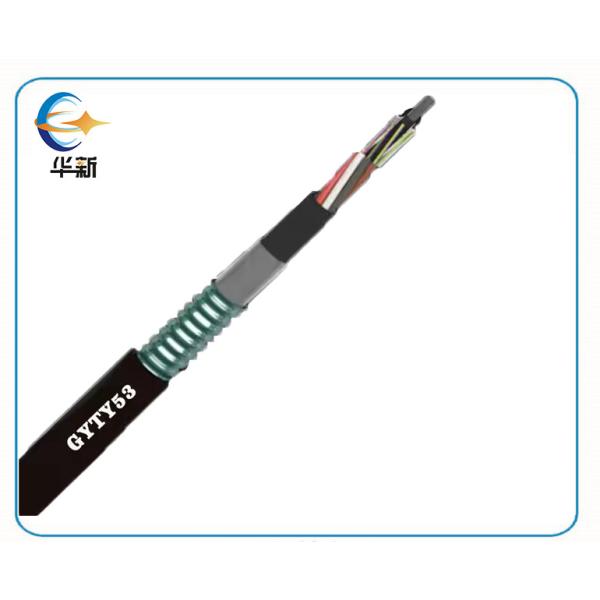

GYTY53 Double Sheath Steel Tape Armor Direct-Burial/ Duct/ Aerial Armored Fiber Optical Cable Fiber Optic Cables

Product Parameters

Counts 2-30 32-36 38-60 62-72 74-96 98-120 122-144 146-216 218-288
Max.fiber counts per tube 6 6 12 12 12 12 12 12 12
Units(Tubes or Fillers) 6 6 5 6 8 10 12 18 24
Cable Diameter(mm) 12.1 12.1 12.4 12.6 14.0 15.4 16.6 16.8 18.7
Weight(Kg/km) 153 153 156 167 202 234 267 271 333
Fiber Type G652D G655 G657 50/125 62.5/125
Tensile Strength(N) Long/Short Term:1000/3000
Crush Resistance(N/100mm) Long/Short Term:1000/3000
Bending Radius(mm) Static/Dynamic:12.5D/25D
Temperature(ºC) Storage /Operation:-40ºC~70ºC

Packing and Transportation

Cable in stock, ship same day.

1 or 2km for a wooden roll.

One roll packed with carton.

Other length is also avaiable without MOQ.

GYTY53 Double Sheath Steel Tape Armor Direct-Burial/ Duct/ Aerial Armored Fiber Optical Cable Fiber Optic Cables

Factory & Production

GYTY53 Double Sheath Steel Tape Armor Direct-Burial/ Duct/ Aerial Armored Fiber Optical Cable Fiber Optic Cables

Certifications

GYTY53 Double Sheath Steel Tape Armor Direct-Burial/ Duct/ Aerial Armored Fiber Optical Cable Fiber Optic Cables

Exhibitions

GYTY53 Double Sheath Steel Tape Armor Direct-Burial/ Duct/ Aerial Armored Fiber Optical Cable Fiber Optic Cables

FAQ
1. Are you real manufacturer?
Yes, our factory is located in Shandong, China,
2. Can you provide the samples?
Yes, Samples free of charge, but freight necessary to bear yourself.
3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the
bulk production. It depends on the order quantity.

4. Can you supply customized products and logo? (OEM/ODM)
Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.
5.Do you have warranty for your products?
Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands
