Underground Direct Burial Ug Outdoor Loose Tube Armored GYTA53 Fiber Optic Cable

Product Categories

Shandong HUAXIN Communication Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

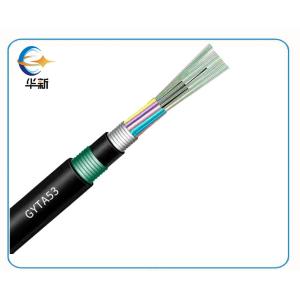

Underground Direct Burial Ug Outdoor Loose Tube Armored GYTA53 Fiber Optic Cable

Name: Underground Direct Burial Ug Outdoor Loose Tube Armored GYTA53 Fiber Optic Cable
Brand: Huaxin or OEM
Price: 1 USD

Brand Name : Huaxin or OEM

Model Number : GYTA53 Outdoor Fiber Optic Cable

Certification : CE, ISO9001

Place of Origin : China

MOQ : 2000M

Price : $1/M

Payment Terms : L/C,T/T

Supply Ability : 500km PER DAY

Delivery Time : 7-14work days

Packaging Details : 1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation

Contact Now

Underground Direct Burial Ug Outdoor Loose Tube Armored GYTA53 Fiber Optic Cable

The GYTA53 Fiber Optic Cable is a high-performance, robust solution designed for demanding outdoor and underground direct burial applications. Engineered with durability and reliability in mind, this cable combines advanced structural design with superior materials to ensure optimal signal transmission in harsh environments.

Basic Info.

Model NO.

GYTA53

Connection Structure

Material Shape

Round Wire

Allowed Lateral Pressure

1000n/100mm

Allowed Tensile Strength

1000N<10000N

Core

Certification

CE,TLC,ISO9001

Brand

OEM

Sheath Material

Transport Package

Wooden Reel or Customized

Specification

2km per roll or customized

Trademark

Huaxin or customized

Origin

China

HS Code

8544700000

Production Capacity

500km/Day

Product Description

Place of Origin:	Shandong, China	Brand Name:	Huaxin or OEM
Model Number:	GYTA53	Type:	Outdoor
Number of Conductors:	≥ 10	Color:	black
Core number:	96	Application:	duct,underground,aerial
Certification:	CE,TLC,ISO9001	Sheath:	PE
Packing:	Customized	Shipping Port:	Qingdao

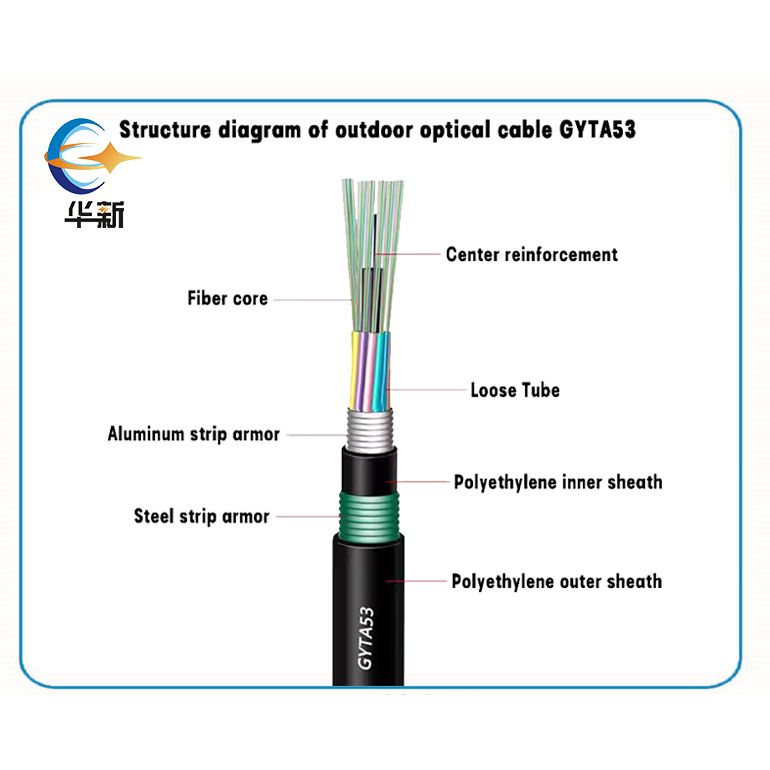

Cable performance

Item		Parameters
Loose tube	Material	PBT
Loose tube	Color	Full color spectrum
Filer	Material	PE
Filer	Color	Black
CSM	Material	Phosphating steel wire
Armoured	Material	Plastic coated aluminum strip
Outer jacket	Material	MDPE
Outer jacket	Color	Black
Min. bending radius	Static	10 times cable diameter
Min. bending radius	Dynamic	20 times cable diameter
Repeating bending	Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Tensile performance	Short term	1500N
Crush	Short term	1000N/100mm
Torsion	Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.
Impact	Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.

Underground Direct Burial Ug Outdoor Loose Tube Armored GYTA53 Fiber Optic Cable

Customization options

Customized logo (Min. order: 3 meters)

Customized packaging (Min. order: 6 meters)

Graphic customization (Min. order: 3 meters)

Lead time

Quantity (meters)	1 - 2000	2001 - 10000	> 10000
Lead time (days)	7	14	To be negotiated

Packing and Transportation

Cable in stock, ship same day.

1 or 2km for a wooden roll.

One roll packed with carton.

Other length is also avaiable without MOQ.

Underground Direct Burial Ug Outdoor Loose Tube Armored GYTA53 Fiber Optic Cable

Factory & Production

Underground Direct Burial Ug Outdoor Loose Tube Armored GYTA53 Fiber Optic Cable

Certifications

Underground Direct Burial Ug Outdoor Loose Tube Armored GYTA53 Fiber Optic Cable

Exhibitions

Underground Direct Burial Ug Outdoor Loose Tube Armored GYTA53 Fiber Optic Cable

FAQ
1. Are you real manufacturer?
Yes, our factory is located in Shandong, China.

2. Can you provide the samples?
Yes, Samples free of charge, but freight necessary to bear yourself.

3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity.

4. Can you supply customized products and logo? (OEM/ODM)
Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.

5.Do you have warranty for your products?
Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands
