Indoor Fiber Optical Cable Fluoroplastics F46 Polyolefins GJFJTC8Y LSZH Indoor 8 Core Communication Cable
GJFJTC8Y cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm fibers,twisting fibers with aramid yarn into the circular cable core,then steel wires assembled into the shape 8 PE sheath.
Product feature
- Small diameter, light weight and friendly
- High tensile strength of aramid yarn meet the requirements of self-supporting and reduce the installation cost.
- Good mechanical and temperature performance.
Application
- Data Communication
- Making connector
- Installation: Riser,Plenum,inter-layer,pipe & trunking
- Located in where waterproof isn't strictly required
- Patch cord, Pigtail & Indoor distribution
Optical Characteristics
| | | G.652 | G.655 | 50/125μm | 62.5/125μm |
| Attenuation (+20℃) | @850nm | | | ≤3.0dB/km | ≤3.0dB/km |
| @1300nm | | | ≤1.0dB/km | ≤1.0dB/km |
| @1310nm | ≤0.36dB/km | ≤0.36dB/km | | |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | | |
| Bandwidth
(Class A) | @850 | | | ≥500MHZ·km | ≥500MHZ·km |
| @1300 | | | ≥1000MHZ·km | ≥600MHZ·km |
| Numerical Aperture | | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength | | ≤1260nm | ≤1480nm | | |
Technical Parameters
| Cable Type | Fiber Count | Cable Diameter
mm | Cable Weight
Kg/km | Tensile Strength
Long/Short Term
N | Crush Resistance
Long/Short Term
N/100m | Bending Radius
Static/Dynamic mm |
| GJFJTC8Y | 2 | 3.5×5.5 | 19 | 200/400 | 100/200 | 30D/15D |
| GJFJTC8Y | 4 | 4.0×6.0 | 26 | 200/400 | 100/200 | 30D/15D |
| GJFJTC8Y | 6 | 5.0×7.0 | 30 | 200/400 | 100/200 | 30D/15D |
| GJFJTC8Y | 8 | 6.0×9.0 | 32 | 200/400 | 100/200 | 30D/15D |
| GJFJTC8Y | 12 | 6.5×9.5 | 40 | 200/400 | 100/200 | 30D/15D |

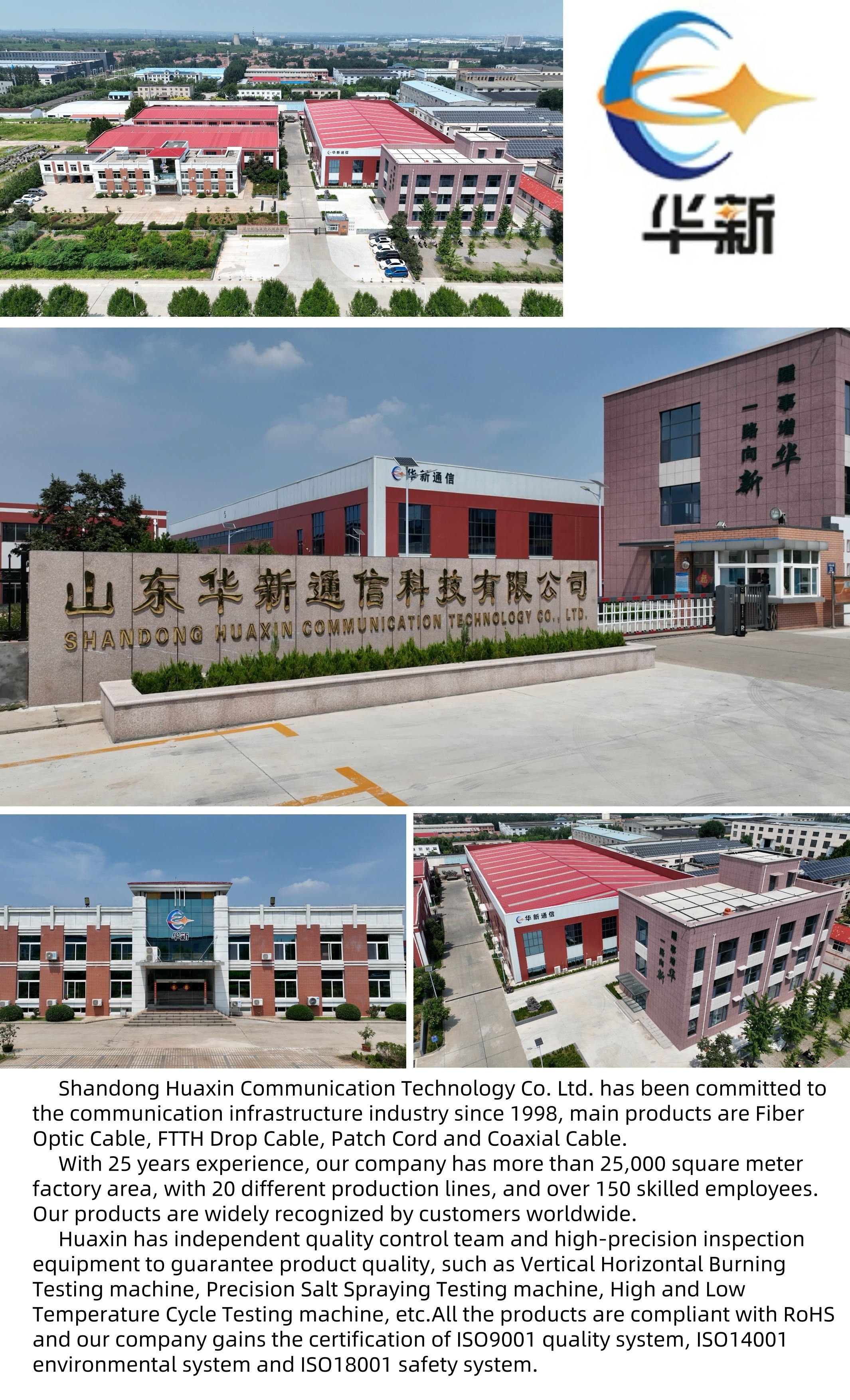

Company Profile
Certification
Exhibition
Packaging and transportation
FAQ
- Can you provide the samples?
Yes,Samples free of charge, but freight necessary to bear yourself.
- Does this fiber support outdoor use?
We offer both indoor and outdoor types of fiber optic products. The outdoor optical fiber is armored design with waterproof and UV protection, which is suitable for outdoor environment.
- Can the length of optical fiber be customized?
Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.
- Is the packaging of the product safe?
We use high-strength anti-shock packaging with anti-static foam or bubble wrap inside to make sure the products are not damaged during transportation.
- Do you support bulk purchase?
Yes, we support bulk purchase and offer preferential price and customized service. Please contact our sales team for a detailed quotation.
